- Battery Operation: Yes
- USB: Yes
- MIDI Interface: No
- DI Output: No

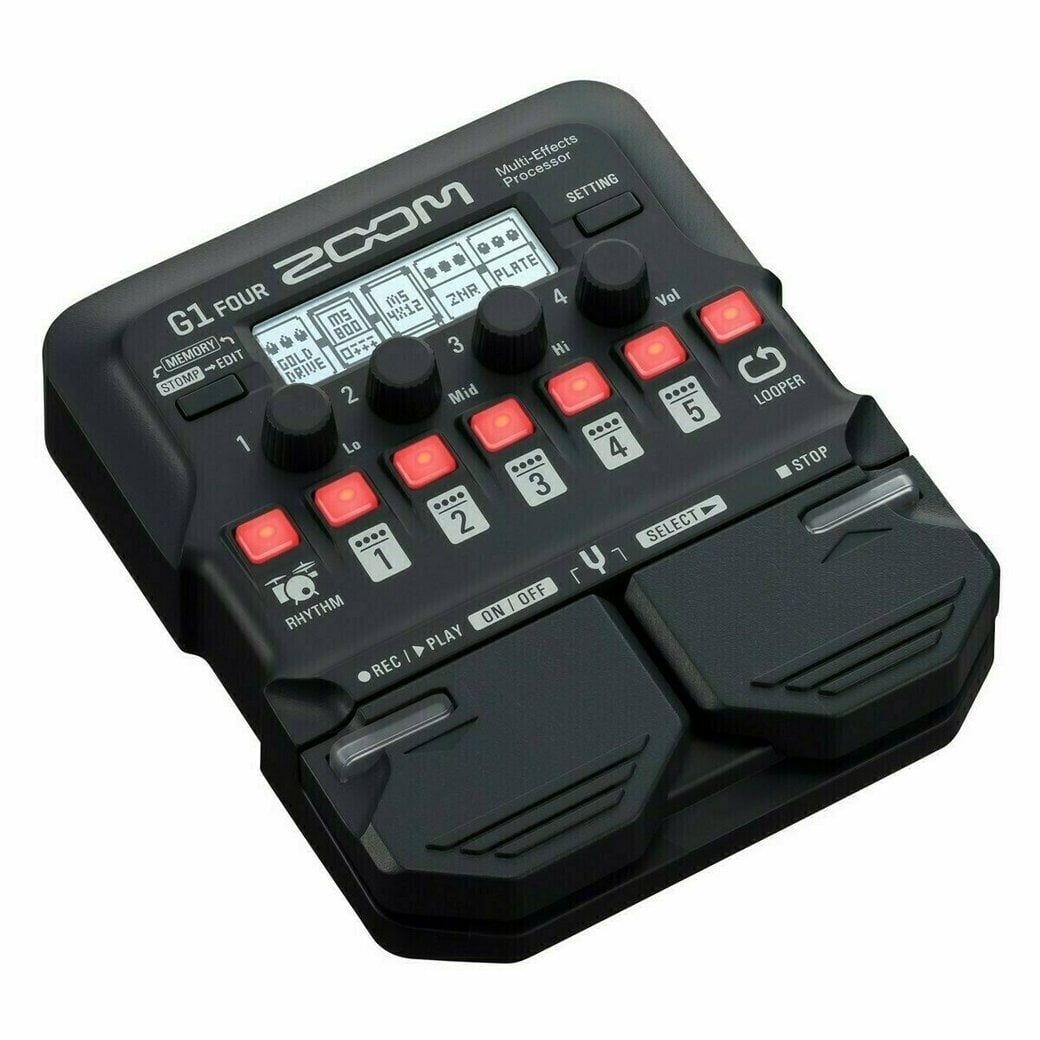

Zoom G1 Four Guitar Multi-effect
- Maximum number of simultaneous effects: 5
- User patches: 50
- Sampling frequency: 44,1 kHz
- A/D conversion: 24-bit, 128 x oversampling
- D/A conversion: 24-bit, 128 x oversampling
- Signal processing: 32−bit
- Display: 128 x 32 dot matrix LCD
- Input: 6,3 mm jack
- Rated input level: -20 dBu
- Input impedance (line): 470 kOhm
- AUX in: 3,5 mm stereo jack
- Rated input level: -10 dBu
- Input impedance (line): 1 kOhm
- Output: 6,3 mm stereo jack (combined line/headphone)
- Maximum output level: Line + 2 dBu
- Headphones: 17 mW + 17 mW (32 Ohm load)
- Input S/N: 120 dB
- Power: AC adapter: 9 V DC 500 mA (ZOOM AD-16)
- 4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off)
- USB: USB MIDI, USB Micro-B
- Dimensions: 156 x 130 x 42 mm
- Weight: 340 g
- Package included: G1 Four guitar multi-effects processor, manual, 4 x AA batteries, patch list
- Colour: Black
Тype: Multieffect
Multieffect is a device that combines multiple effects into a single unit. It allows players to switch between various sound effects - such as distortion, delay, reverb, modulation, or dynamics - and often includes the ability to create and save custom presets. Multieffects are popular for their versatility, compact design, and convenience in both live performance and studio use.
Tuner: Yes
The built-in tuner allows you to quickly and accurately tune instruments directly from the unit. This feature eliminates the need for additional tuning devices, increasing convenience and efficiency on stage or in the studio.
Controls
- Knob
- FS

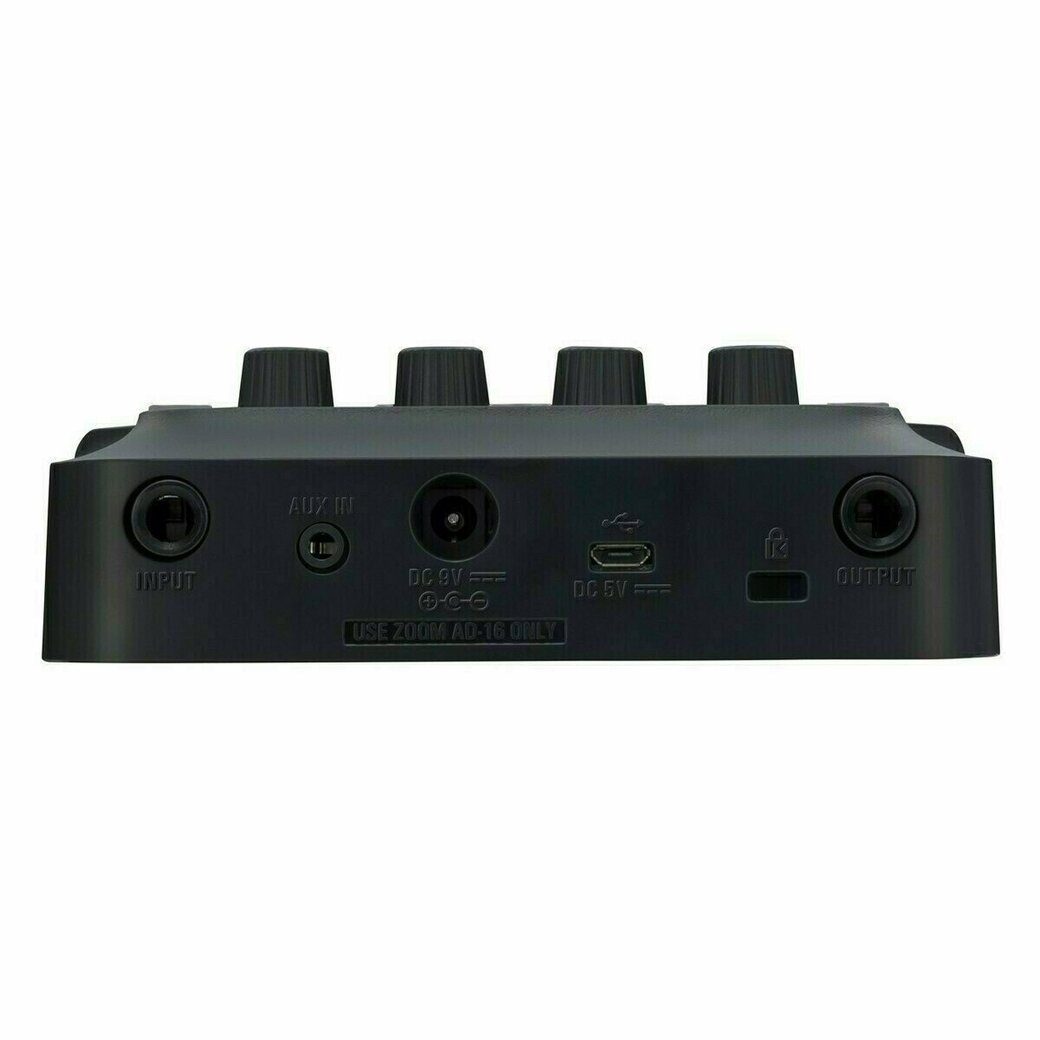

Inputs
- AUX IN
- Jack 6,3 mm TS
- USB
Outputs: Jack 6,3 mm TRS
A universal connector used to connect various audio devices.
Battery Operation: Yes
Battery power provides flexibility and mobility. This feature allows you to use the device anywhere, even in places where an electrical outlet is not available. Battery power is ideal for situations that require portability and independence from the grid, whether you're outdoors, on the road, or in a location with limited access to electricity.
Package Contents
- Manual
- AA Battery
Тype
True Bypass
Tuner
Number of Presets
Number of Buttons
MIDI Interface
Inputs
Outputs
USB
DI Output
Package Contents
Battery Operation
Battery Type
Play Time (hours)
UK/EU Power supply included
Height (cm)
4.2
Width (cm)
13
Depth (cm)
15.6
Net Weight (kg)
0.34
Made in
China
Documents
Manufacturer information
Safety instructions
Please refer to the user manual for the specific safety instructions for this product.
