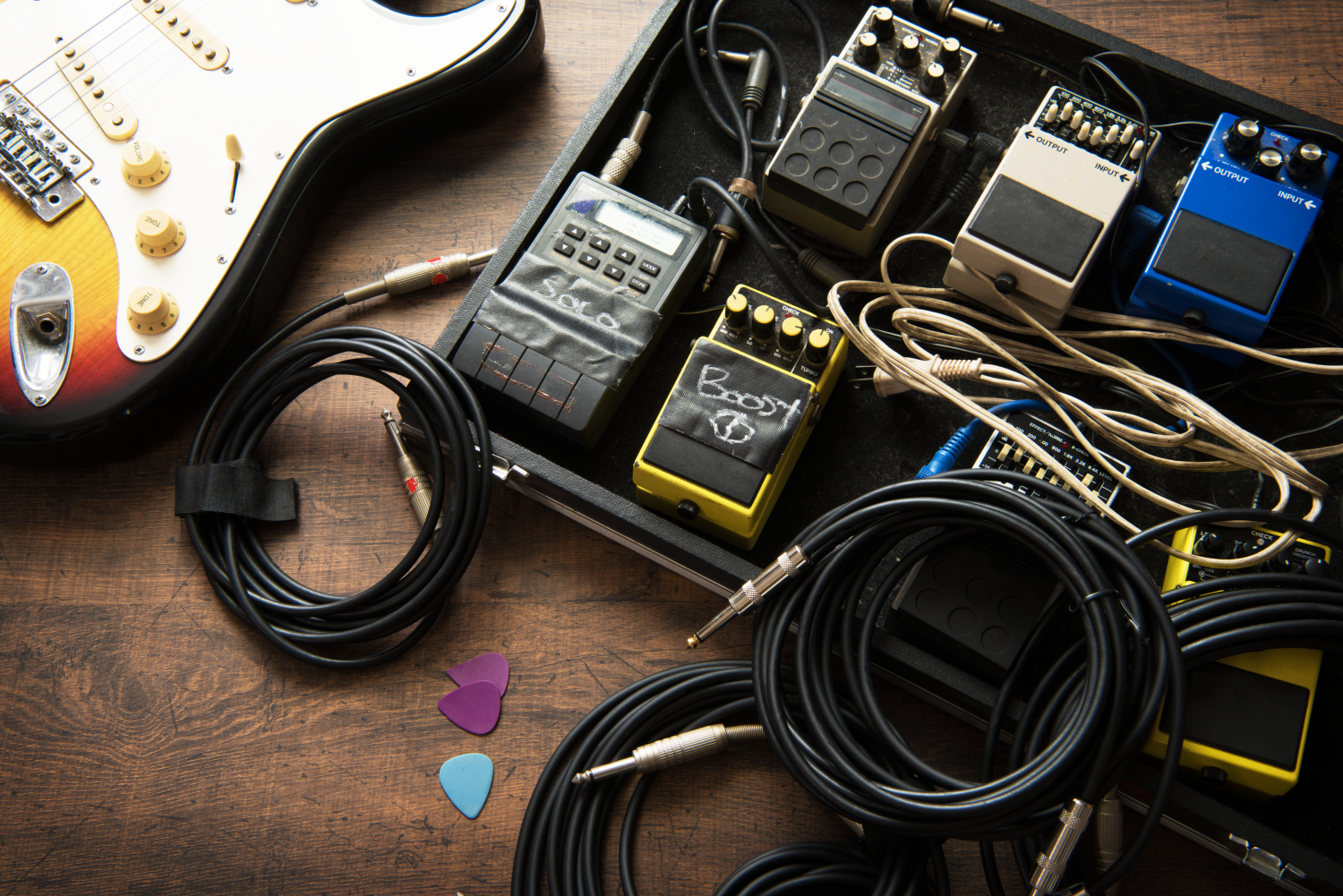

Pedalboard: complete guide to pedal arrangement, power and grounding

Why pedalboards make noise

Noise usually appears in three forms. The first is a deep hum around 50 Hz, usually indicating a ground loop. The second is fine hiss or digital noise—often caused by power or a digital pedal on a “shared” branch. The third is ordinary amp noise when gain is high and the signal passes through many pedals. Add long or cheap patch cables, weak shielding, and poorly ordered effects on your pedalboard, and you have a recipe for disaster.

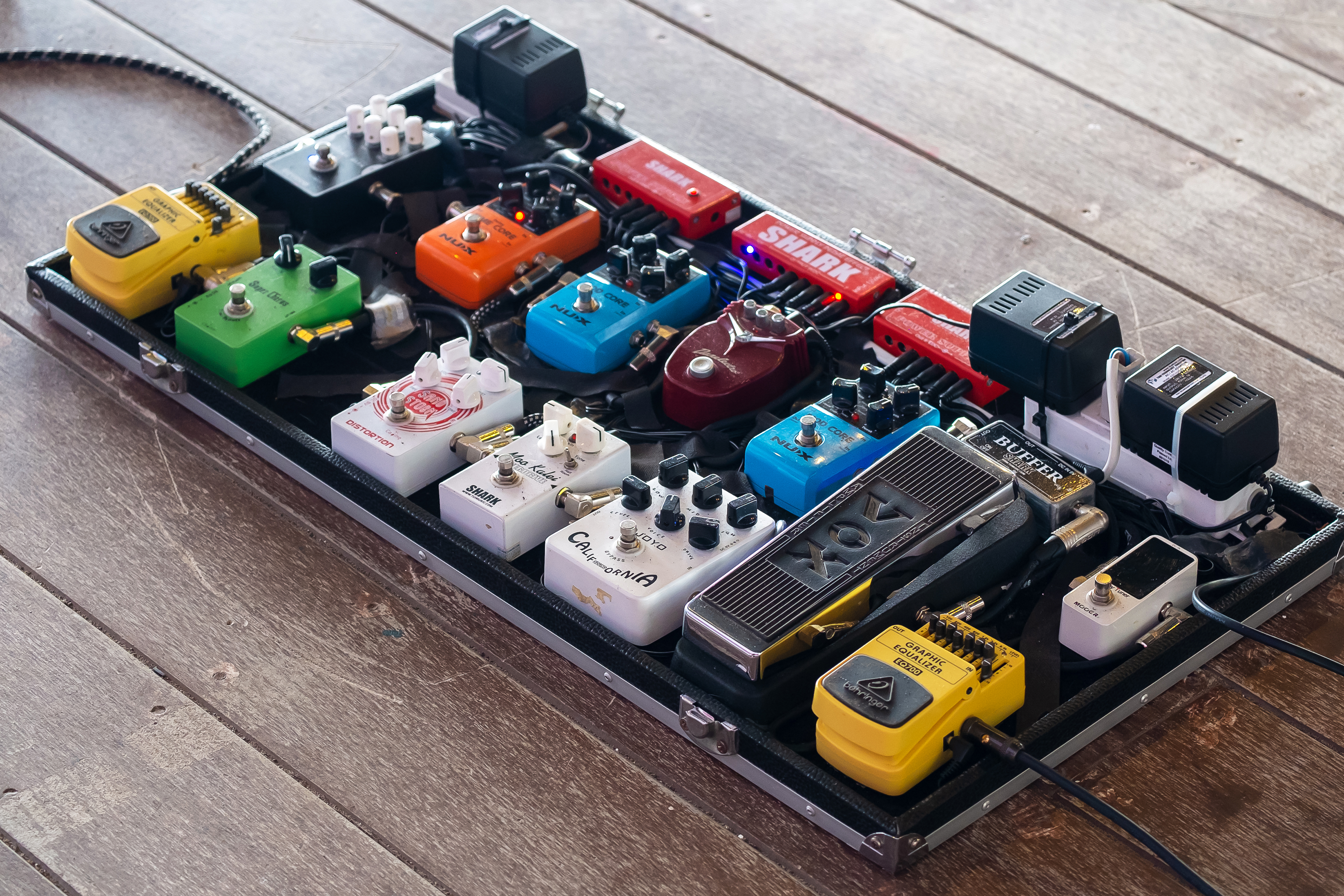

Correct pedal order

The simplest logic works best. Start with pedals that tune and shape the guitar’s input signal, i.e., a tuner and possibly a wah-wah or compressor. Several synth-simulating effects also fit here. Then come overdrive, fuzz, and distortion, which do the “dirty” work—adding distortion and character. After them, fine-tuning the tone with an equalizer (EQ) is appropriate. Then pedals that prefer a clean signal follow: modulation types like chorus, flanger, or tremolo. Finally, time-based effects delay and echo. If playing directly into an amp without an FX loop, keep delay and reverb last. This ensures a clear sound without unnecessary noise buildup.

When you have an effects loop in your device

If your amp has an FX loop, it’s worth using. In front of the amp input, place the tuner, wah, compressor, and all drive pedals. Move EQ, modulation, delay, and reverb into the loop. They will then receive an “already processed” signal from the preamp and won’t accentuate noise generated before them. The result is quieter and clearer, especially at higher gain.

How to power pedals

Power is half the battle. The most reliable solution is a power supply with isolated outputs, so each pedal has its own branch and doesn’t pull noise from others. Check consumption—how many milliamps your pedals draw—and leave at least a 20% margin. Sensitive or digital effects should be on a separate branch, analog should not be crowded with digital on the same line, and pay attention to voltage and polarity—most pedals require 9 V DC with center negative.

Batteries are suitable only for low-draw pedals, like overdrive or fuzz, which can last months, but for demanding effects, voltage drops quickly and can alter the sound. A dedicated adapter per effect is reliable but takes space and produces many cables. Universal adapters are a cheaper alternative with adjustable voltage and polarity, but may add subtle noise—so a stabilized adapter is recommended.

If you use multiple effects, consider a multi-power supply that can power several pedals simultaneously with isolated outputs, correct voltage, polarity, and current for each branch. Check pedal specifications before purchase and think ahead—a more powerful supply with margin is worthwhile if you plan to expand your pedalboard.

Grounding and cables

Handle grounding like a star: route everything to a single “center,” either the power source or power strip. This reduces the chance of ground loops, which cause hum. Keep patch cables short and reliable, minimizing capacitance and unnecessary noise gain. Avoid running power and signal cables in parallel; if they must run together, keep the distance as short as possible. If you use many true-bypass pedals with long runs, add a buffer at the start or end of the chain. It preserves highs and improves signal-to-noise ratio without changing the character of the sound.

Simple diagnostics that always work

Start completely clean: guitar straight into the amp, no pedals. Is it quiet? Great. Plug in the first pedal and listen. Then the second. If noise appears, you already know which part caused the problem. Try powering that pedal from another isolated branch, and check the patch cable between it and its neighbor. If you use an FX loop, temporarily disconnect it and see if the hum disappears. Very often, moving delay and reverb into the loop—or temporarily removing them—helps determine whether they are generating noise at higher gain. A noise gate can also be tried before distortion or in the loop—it cuts clutter from the guitar at the input, and the preamp noise in the loop.

What usually helps the most

The biggest improvement comes from isolated power with margin and a reasonable pedal order. Adding short patch cables and a buffer for long runs solves most problems.

Bassists and specifics

For the bass guitar, it often helps to place a compressor before everything else, and at the end, have a preamp or DI that sends a clean, strong, and quiet signal to the stage or mixing desk. Some bassists also like a high pass filter, which removes unnecessary “thuddy” clutter at the very bottom. The same principle applies: isolated power and short cable runs are the best friends of silence.

Silence is the result of several good habits

If you arrange pedals on the pedalboard into a clear chain and provide independent power and clean connections, noise stops being an issue. Start with the basics without pedals, add them one by one, check power and cables, move time-based and modulation effects into a loop, and add a buffer or noise gate as needed. The result will be a clean sound—without unnecessary hum.
