- Тype: 2 Bandwidth
- Woofer: 8"
- Tweeter: 1,75"

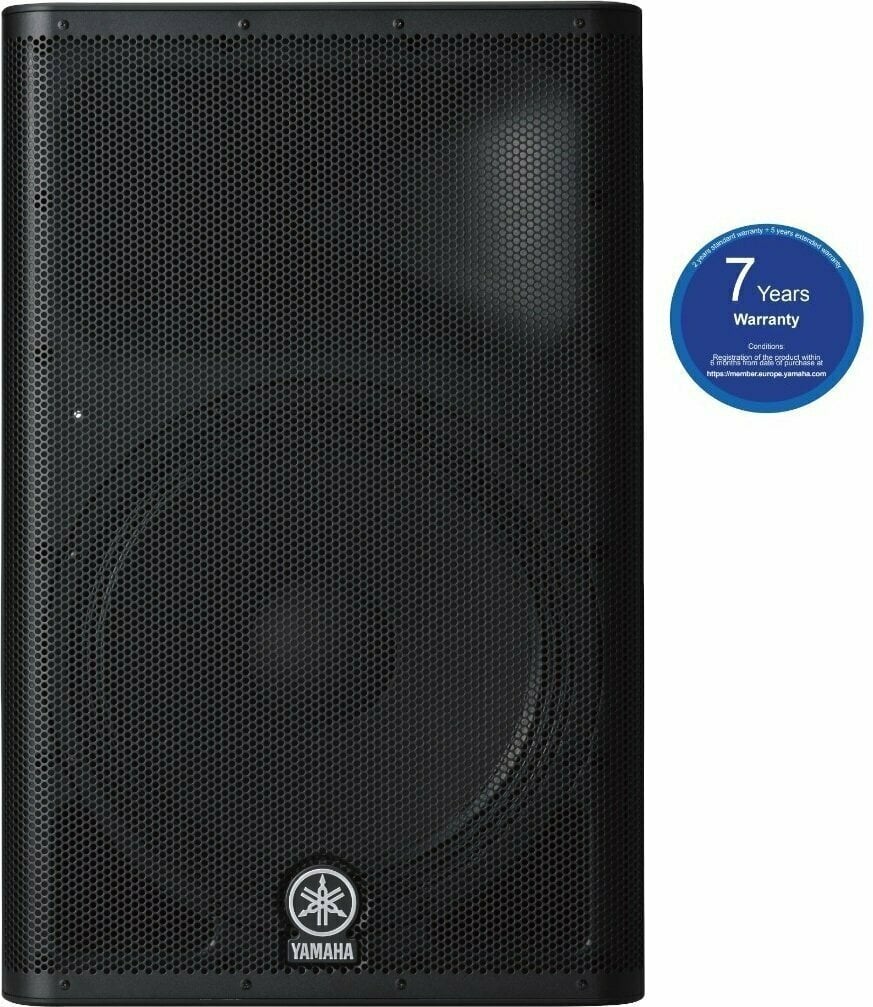

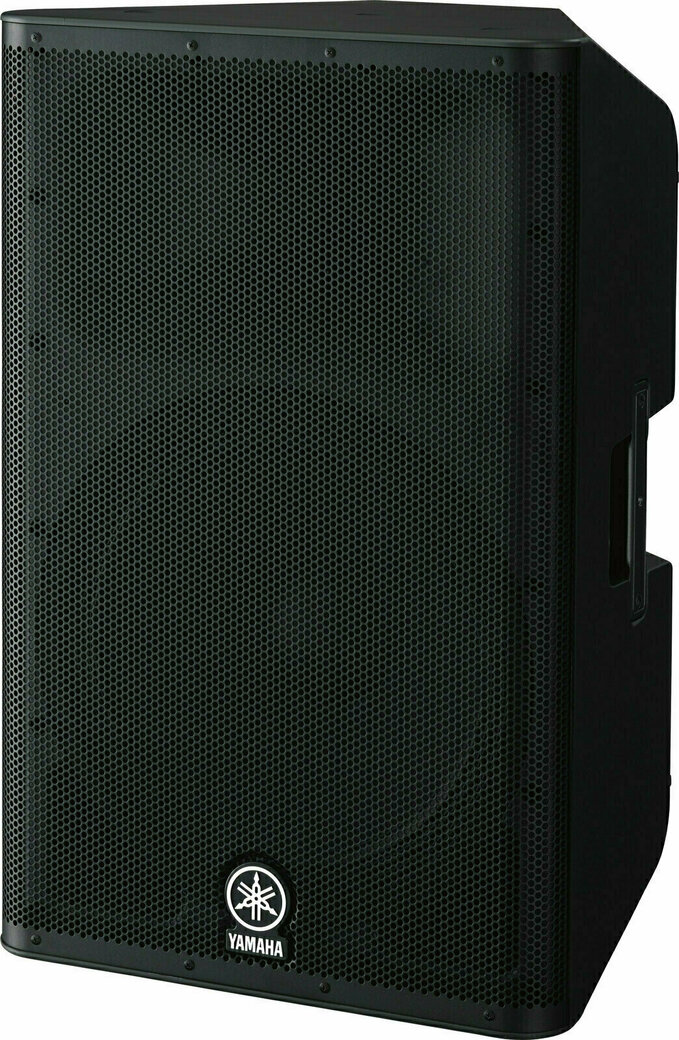

Yamaha DXR 8 MKII Active Loudspeaker
Active 2-way 8" speaker from Yamaha DXR mkII series. The most compact of the DXR mkII Series speakers, the DXR8 mkII makes the most of its 1100 W of power, delivering extremely high output while maintaining outstanding resolution. Adding a DXS12 mkII subwoofer gives you an ultra-compact high-power PA system.
Since its inception, the DXR Series has long signified a confluence of raw power and technological innovation that reliably harnesses and delivers impressively high output with superior quality and clarity. The DXR mkII Series powered loudspeakers are the newly upgraded models of the series that add even more SPL and feature a larger, yet much lighter 1,75” Neodymium HF compression driver for extremely clear voice reproduction and musicality.
Whether for fixed applications or mobile live performances - whatever direction you want to take your sound - the DXR mkII Series is up to the task, combining raw power with our own proprietary advanced DSP functions for all the reliability and outstanding clarity.
- Material: ABS, matte finish
- Speaker type: 8" 2-way, Bi-amp powered speaker, Bass-reflex type
- Frequency range (-10 dB): 57 Hz – 20 kHz
- Speakers: LF: Diameter: 8" cone, Voice Coil: 2", Magnet: Ferrite. HF: Diaphragm: 1,75", Type: 1" throat compression driver, Magnet: Neodymium
- Crossover: FIR-X tuning (linear phase FIR filter)
- Output power: Dynamic: 1100 W (LF: 950 W HF: 150 W) / Continuous: 700 W (LF: 600 W HF: 100 W)
- Maximum output level (1 m; on axis): 130 dB SPL
- I/O connectors: XLR, 6,3 mm jack, RCA
- Processors: D-Contour: FOH/MAIN, MONITOR, OFF
- Power requirements: 100 V - 240 V, 50 Hz/60 Hz
- Power consumption: 90 W
- Flying and mounting hardware: Top x 2, Rear x 1 (Fits for M8 x 15 mm eyebolts)
- Pole socket: 35 mm with 2-way features (0 or 7 degrees)
- Dimensions: 280 x 458 x 280 mm
- Weight: 12,80 kg
- Colour: Black
Frequency Range: 57 Hz - 20 kHz
The frequency response 57 Hz - 20 kHz provides a wide enough range to capture all the fine musical and sonic details.
Woofer: 8"
Thanks to 8" bass woofer, you will enjoy deep, rich and dynamic bass that adds a new dimension to your sound. This woofer is specially designed to offer clean and precise bass performance.

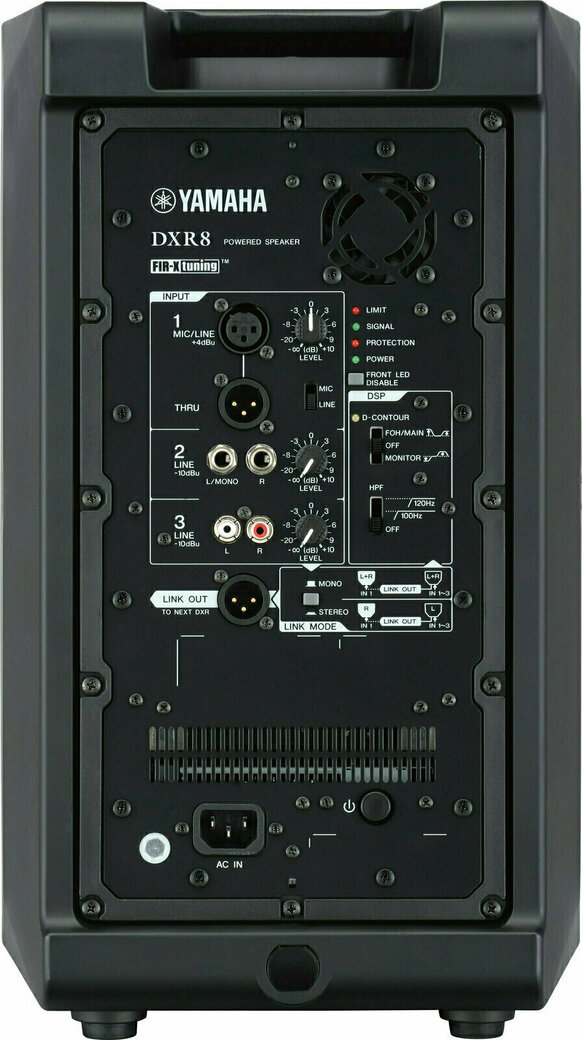

Inputs
- TRS
- XLR
- RCA
Bi-Amp: Yes
Bi-amping is a method of speaker wiring in which the treble and bass drivers are connected to separate amplifiers. This ensures that each driver receives the optimal amount of power, resulting in cleaner, more detailed and less distorted sound with better control and dynamics.
Pole Mount: Yes
The speaker-post mount is a reliable system for stable speaker installation. This system ensures optimal height and placement of the speaker for better acoustics and sound performance. Constructed of high-quality, impact-resistant material, the mount allows for easy installation and adjustment of the speaker position.
EQ: Yes
The product is equipped with an equalizer that allows you to precisely adjust the sound to your personal preferences. With the ability to fine-tune different frequency bands, you can easily enhance or reduce specific frequencies to achieve the ideal audio experience tailored to your individual needs and preferences.
Microphone Input: Yes
The microphone input allows direct connection of a microphone for recording or amplifying voice or instruments.
Тype
Power (Watt)
Frequency Range
Woofer
Middle Speaker
Tweeter
Display
No
Colour
Black
Housing
Polypropylene
USB
No
Outputs
Balanced XLR M
MP3 / Line In
Yes
AUX IN
Yes
Microphone Input
Yes
Offer Configuration
Standard offer
Package Contents
Manual, Power Cable
Power Supply
240V
UK/EU Power supply included
No
Height (cm)
45.8
Width (cm)
28
Depth (cm)
28
Weight
12,8 kg
Made in
China
