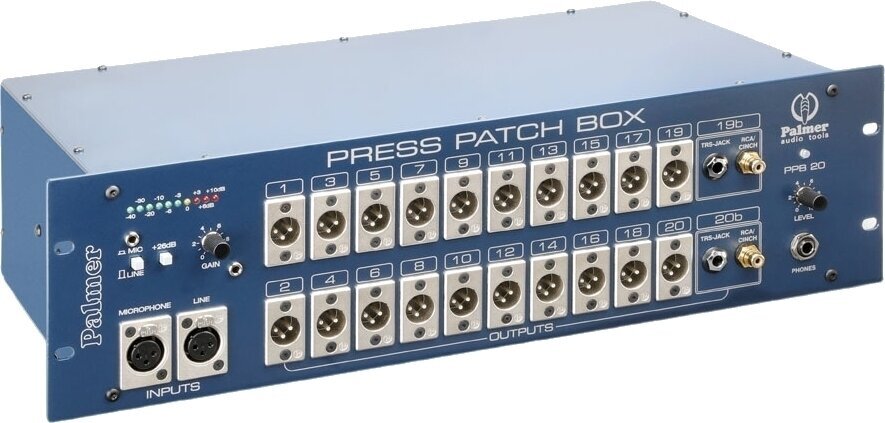

Palmer PPB 20 Patch panel
20 channel audio splitter for press conferences and other applications. On a transformer split basis, one line input is split out to ten outputs. All inputs and outputs are balanced transformer isolated. Line input and outputs. Adjustable input gain (-8 to +25dB). Level meter. Headphone output to monitor the input level, headphone volume adjustable. Individual ground lift. switches for each output. Ground Lift switch for the input. Expandable setup thanks to the Bus In/Out sockets. Dimensions: 480 x 200 x 135 mm. (19" x 3U) Weight: 9.09 kg
Product type: Splitters
Type: mic & line split
Split type: 1 in 20
Channels: 1
Inputs: 1
Input connectors: XLR
Max. input level: Mic: 0 dBu, Line: +20 dB
Adjustable input: yes
Number of split-outputs per canal: 20
Max. output level: + 20 dB
Output connectors: RCA, XLR, 6.3 mm Jack
Adjustable output: no
Transformer isolated outputs: yes
Controls: attenuator, ground lift, input gain, mic/line
switch, phones level
Indicators: input level, Power
Operating voltage: integrated (115 / 230 V)
Cabinet material: sheet steel
Cabinet surface: powder coated
Width: 480 mm
Width: 19"
Depth: 200 mm
Height: 135 mm
Height: 3 U
Weight: 9.09 kg
Power Supply
240V
UK/EU Power supply included
Yes
Made in
Germany
Documents
Instructions for use
Manufacturer information
Safety instructions
Please refer to the user manual for the specific safety instructions for this product.
