- True Bypass: Yes
- Battery Operation: No
- Controls: Attack, High Cut, Low Cut, Mix, Save, Speed
- Power Supply: 9V, Adapter

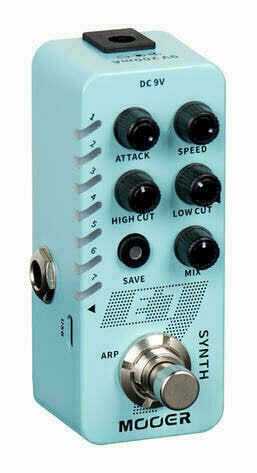

MOOER E7 PGS Guitar Effects Pedal
The Mooer E7 Polyphonic Guitar Synth pedal can transform your guitar into a typical electronic synthesizer without the need for special pickups or modifications to the instrument. The name is based on the seven different synthesizer presets, which can be edited independently of each other as desired. The presets include trumpet and organ-like sounds, sine and square LFOs, an 8-bit synth, and a synth pad. Each preset has its own Arpeggiator, High and Low Frequency Cut, as well as Attack and Speed, which allow guitarists to easily and intuitively shape the sound of the pedal - the E7 Polyphonic Guitar Synth offers endless possibilities!
Specifications:
- polyphonic guitar synth effects pedal
- 7 selectable presets with individually adjustable parameters
- individual, adjustable arpeggiator for every sound
- high cut and low cut function
- true bypass
- firmware update via USB port
- controls for Attack, Speed, High Cut, Low Cut, Mix
- Save button
- bypass footswitch
- status LEDs
- metal housing
- 6.3 mm mono in / output jacks
- power supply via optional 9V DC adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center
- battery operation not supported
- current draw 200 mA
- dimensions (L x W x H) 93,5 x 42 x 52 mm
True Bypass: Yes
It has a true bypass function, which ensures that when the effects are turned off, the signal passes directly through the unit without influence or degradation.

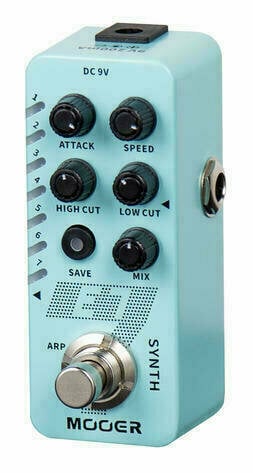

Inputs: Jack 6,3 mm TS
A universal connector used to connect various audio devices.

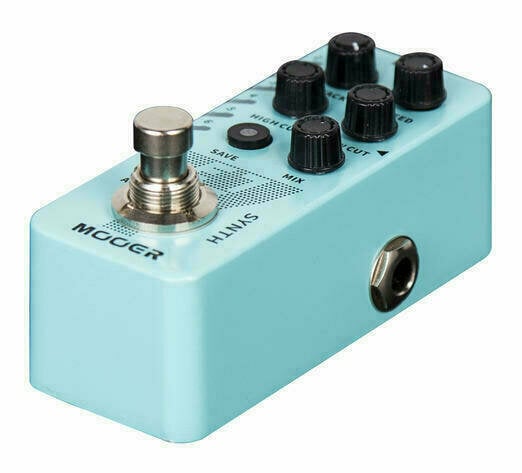

Outputs: Jack 6,3 mm TS
A universal connector used to connect various audio devices.

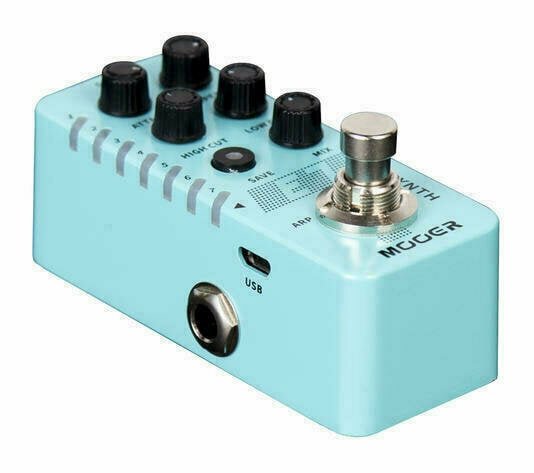

Controls
- Speed
- Mix
- High Cut
- Save
- Attack
- Low Cut
Colour
UK/EU Power supply included
Made in
China
Documents
Safety instructions
Please refer to the user manual for the specific safety instructions for this product.
