Buy this product in a discounted set
- USB: Yes
- MIDI Interface: Yes
- DI Output: No
- External FX Loop: Yes
Line6 Helix Guitar Multi-effect
The Line 6 Helix multieffects processor is a flagship floor unit that combines amp modeling, cabinet simulation, and full effects processing in a single pedalboard-ready chassis. Powered by dual SHARC DSP engines running HX modeling technology, it recreates the dynamic response of vintage and modern tube amplifiers with component-level accuracy. Four independent stereo signal paths, capacitive-touch footswitches, and a built-in expression pedal give players hands-on control over complex rigs without menu diving.
- Dual-SHARC DSP architecture delivers 112 amp models, 274 effect models, and 87 cabinet simulations through HX modeling.
- Effects Loops: 4 send/return pairs with ground lift integrate existing stompboxes into any preset
- Full MIDI implementation with in/out/thru, S/PDIF, AES/EBU, and USB audio streaming at 24-bit / 96 kHz
- Eight Snapshots per preset enable clean tone transitions without audio dropouts during live performance
Line 6 Helix Multieffects Processor — Flagship Floor Modeling Engine
The Line 6 Helix multieffects processor is the flagship floor unit of the Helix family, built around HX modeling for stage, studio, and direct-to-FOH use. Two Analog Devices ADSP-21469 SHARC processors at 450 MHz form the audio engine, while NXP ARM Cortex microcontrollers handle routing. Component-level modeling captures the dynamic response of vintage and modern tube amplifiers.
HX Modeling and Component-Level Accuracy
HX modeling measures each stage of an amplifier's circuitry and matches results to the original hardware. Behavioral modeling reproduces notoriously difficult analog behaviors such as germanium fuzz and bucket-brigade analog delay. Cabinet models include 12 microphone types with adjustable distance up to 25.4 cm, and third-party impulse responses load into 128 IR slots.
I/O and Studio Integration

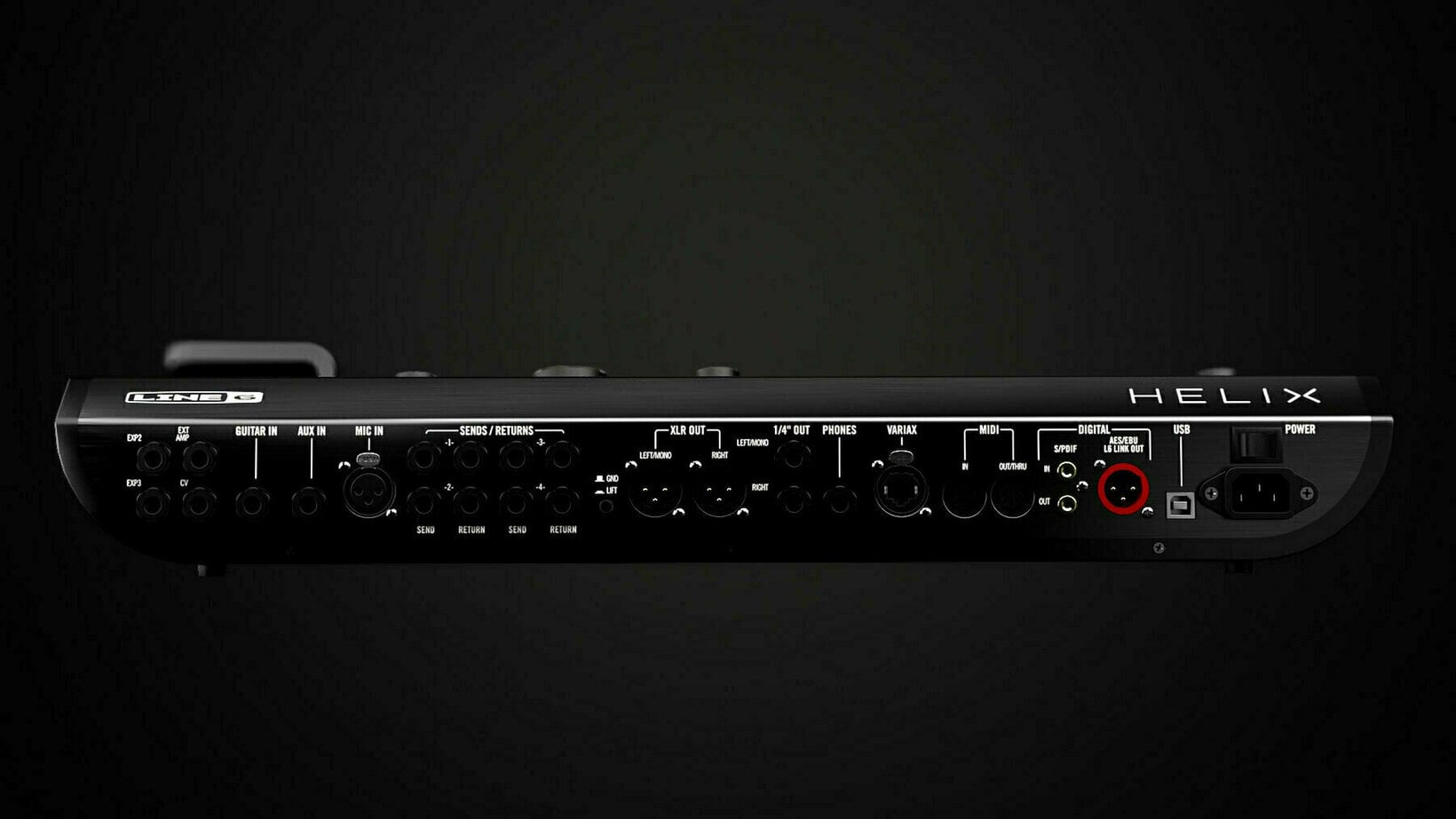

The rear panel targets professional rigs with four independent effects loops supporting per-loop trails for natural preset spillover. Digital connectivity covers S/PDIF in/out, AES/EBU, MIDI in/out/thru, and USB 2.0 streaming 24-bit / 96 kHz audio to a DAW. Two external expression pedal inputs, a CV output, an external footswitch input, and a Variax Digital Interface complete the surface.
- External pedals integrate into any preset block using 4 send/return pairs.
- Digital I/O: S/PDIF, AES/EBU, USB 2.0 — multi-channel audio streaming at 24-bit / 96 kHz
- MIDI integration — full Program Change and CC control over external gear, with USB MIDI for DAW connectivity
Dual-SHARC DSP and Signal Architecture
Two SHARC processors provide headroom for four simultaneous stereo signal paths, letting players process up to four instruments independently. The Command Center dispatches up to six MIDI commands per preset or snapshot recall, and dedicated relays handle external amp channel switching. Sample rates of 44.1, 48, 88.2, and 96 kHz are selectable globally.
- DSP Engine: 2× ADSP-21469 SHARC @ 450 MHz — 2700 MFLOPs per processor
- Signal Paths: 4 independent stereo paths — process multiple instruments or build parallel chains
- HX Model Library — 112 amps, 274 effects, and 87 cabs covering vintage and modern gear
Floor Control and Hands-On Editing

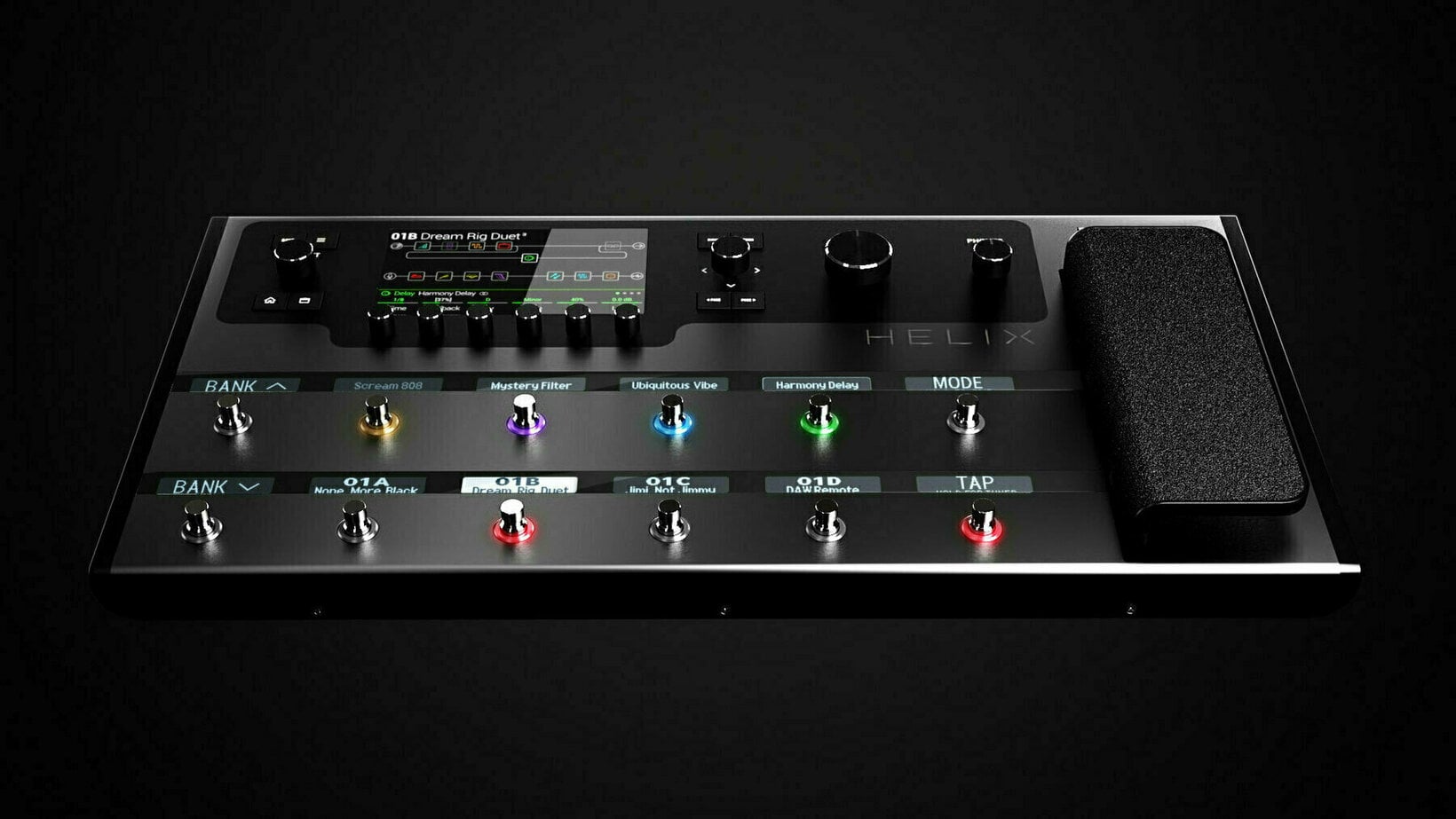

The top panel centers on a color display flanked by a joystick, six parameter knobs, and capacitive-touch footswitches with color-coded LED rings. Each footswitch operates in three modes (Preset, Stomp, Pedal Edit), giving extensive assignable layers. A built-in expression pedal handles volume, wah, or any assignable parameter, while a Tap/Tuner button provides chromatic tuning.
- Capacitive-touch footswitches with LED rings offer three operating modes for preset, stomp, and parameter editing.
- Expression Control: Built-in pedal + 2 external inputs — assignable to volume, wah, or any continuous parameter
- Headphone output — silent practice and preset editing without an amp, with adjustable level
Тype: Multieffect
Multieffect is a device that combines multiple effects into a single unit. It allows players to switch between various sound effects - such as distortion, delay, reverb, modulation, or dynamics - and often includes the ability to create and save custom presets. Multieffects are popular for their versatility, compact design, and convenience in both live performance and studio use.
Controls
- Expression Pedal
- Parameter Knob
- Joystick
- Phones Output
- Tap/Tuner
- Control Button
- Volume
- Footswitch
MIDI Interface: Yes
It supports MIDI, allowing you to connect and communicate with other MIDI-compatible devices. This feature extends control and integration into the larger music environment, increasing flexibility and creativity in music creation.
Footswitch Input Port: Yes
It has a footswitch input that allows you to control various functions of the unit without using your hands. With this feature, you can easily switch effects, channels, or other settings while playing, which is ideal for live performances and smooth control without interrupting your game.
Headphone Output: Yes
The headphone output allows direct connection of headphones for private listening. This output provides a convenient way to enjoy the sound without disturbing others or ambient noise.
External FX Loop: Yes
The Effect Loop makes it easy to connect external effects. This feature provides the ability to add and edit various sound effects without affecting the underlying signal. It's a great solution for musicians and sound engineers who need more flexibility and creativity in sound processing.
Number of Effects
Controls
Footswitch (12 x), Expression Pedal, Joystick, Volume, Phones Output, Tap/Tuner, Control Button (9 x), Parameter Knob (6 x)
MIDI Interface
External FX Loop
Colour
Processor
Rackmountable
Original Colour by Producer
Black
USB
Microphone Input
Yes
Footswitch Input Port
Headphone Output
DI Output
Offer Configuration
Standard offer
Power Supply
UK/EU Power supply included
Made in
China
Buy Line6 Helix Guitar Multi-effect in discounted set.
SET with discounted accessories. Accessories and consumables will be necessary sooner or later. Buy them now and save yourself some money and time. You will not have to deal with it later. Additionally, you can be sure the accessories in the SET will fit your product.
Available sets:
All reviews come from verified customers who have purchased a product from us in the past.
AI summary of reviews
Based on the number of reviews: 20
Strengths
- Sound Quality: Customers consistently praise the phenomenal and powerful sound output, noting its close resemblance to real amplifiers and overall high fidelity.
- Versatility and Options: The device offers infinite possibilities for sound customization, effects, and settings, allowing for broad musical creativity and use with multiple instruments simultaneously.
- Regular Updates: Despite its age, the processor receives continuous updates and support, which keeps it competitive and improves its performance over time.
- Intuitive Interface: Users find the operating interface logical and easy to learn, contributing to a positive user experience.
Weaknesses
- Preset Configuration: Some users find configuring presets to be unintuitive and cumbersome, which can be a source of frustration.
- Physical Bulk: The unit is considered somewhat heavy, making it less convenient to transport for some users.
What customers repeat
Verdict
Documents
Instructions for use
Safety instructions
Please refer to the user manual for the specific safety instructions for this product.
