- Woofer: 10"
- LF Driver Type: Down-Firing High Excursion
- Power: 200W
- Frequency Range: 27 Hz - 120 Hz
- Sound Pressure Level (SPL): 113 dB

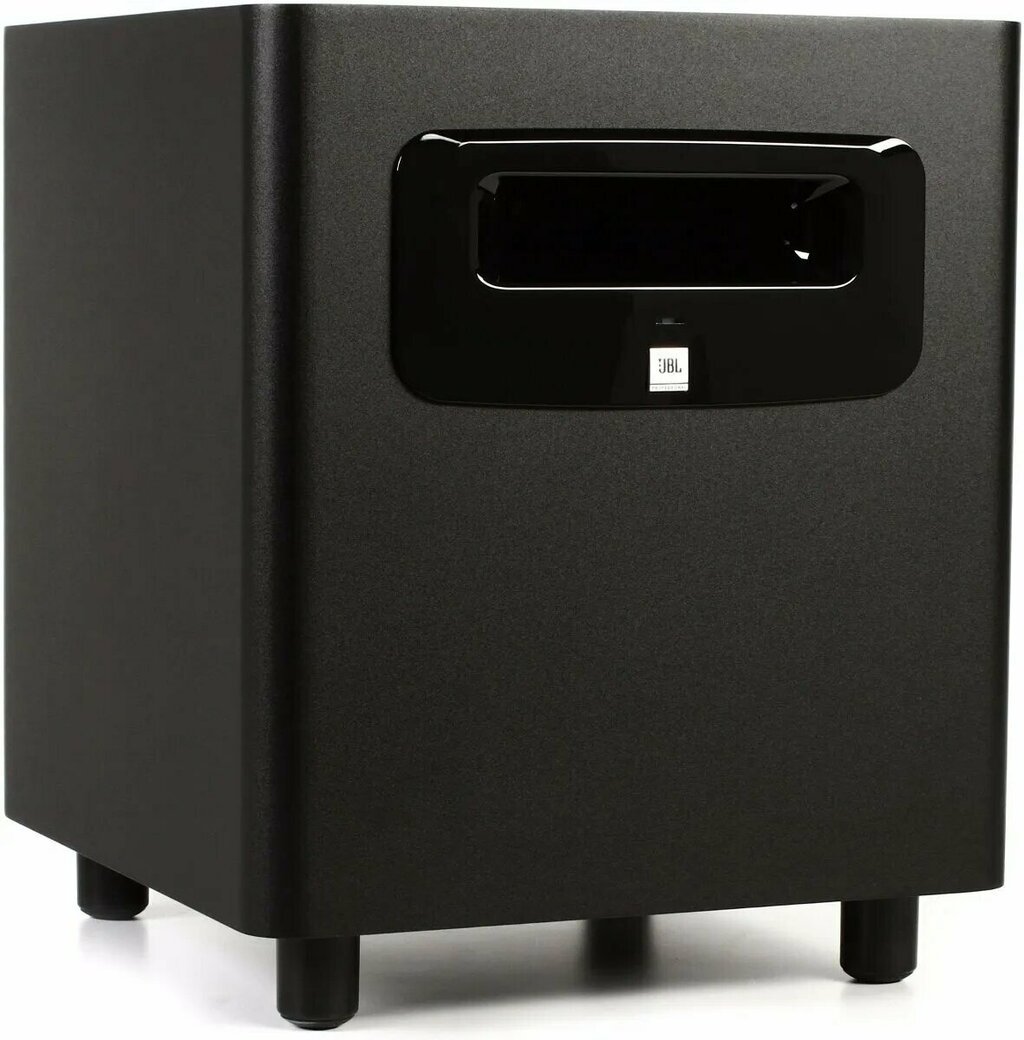

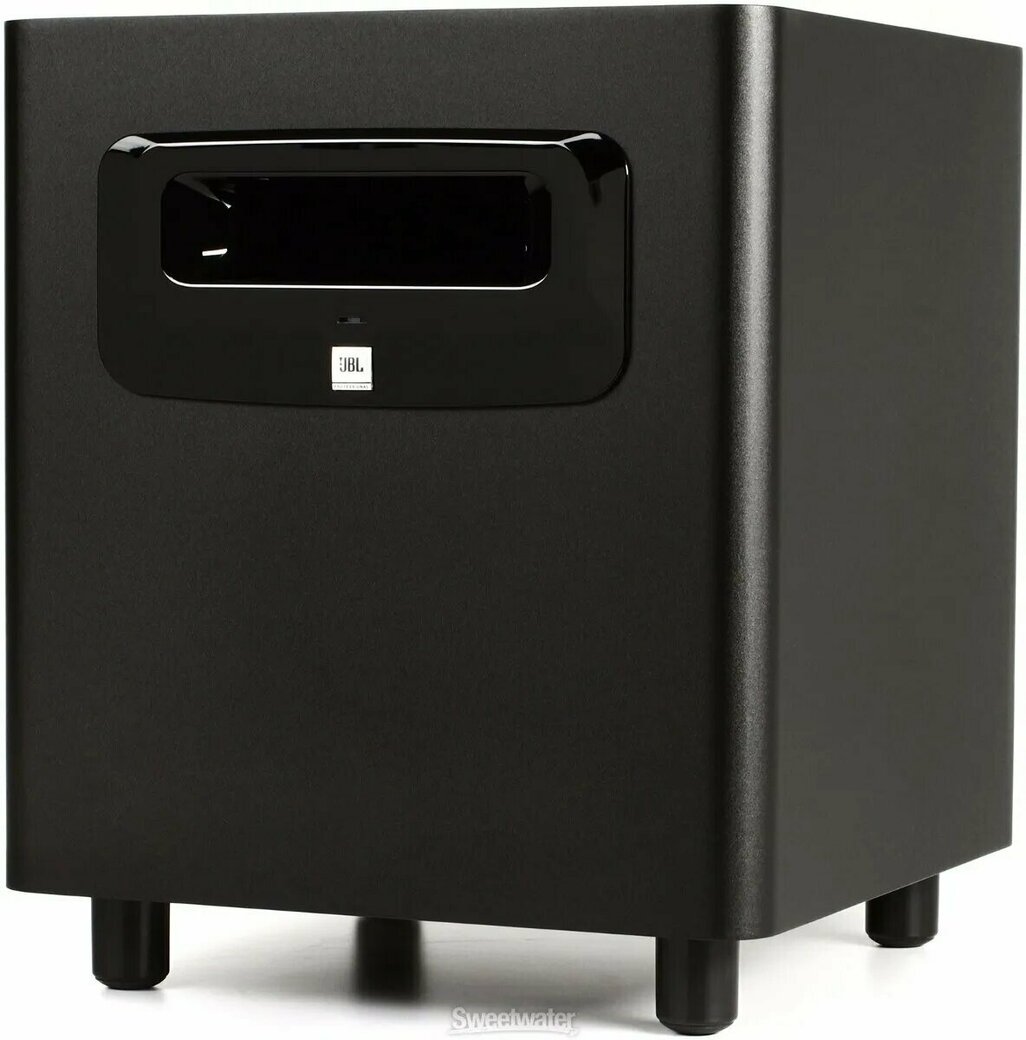

JBL LSR310S/230 Studio Subwoofer
Extend your system LF all the way down! The LSR310S subwoofer incorporates JBL’s patented Slip Stream™ Port working in concert with a custom 10" down-firing driver and a 200 Watt amplifier to add deep, powerful bass to any studio monitor system. A JBL first, the XLF Extended Low Frequency setting lets you hear your tracks with the augmented bass tuning used in today’s dance clubs. With 10-inch High-Excursion, Down-Firing driver brings you low Frequency Extension down to 27 Hz. Max Peak SPL 113 dB. Crossover Settings: 80 Hz, XLF or External. Dimensions (HxWxD) 448 mm x 381 mm x 398 mm (17.65 in x 15 in x 15.65 in). Weight 15.6 kg / 34.3 lbs
Woofer: 10"
Thanks to 10" bass woofer, you will enjoy deep, rich and dynamic bass that adds a new dimension to your sound. This woofer is specially designed to offer clean and precise bass performance.
Power: 200W
With power up to 200W , you get plenty of headroom for impressive volume and dynamics whether you're in the studio, at home, or partying.
Frequency Range: 27 Hz - 120 Hz
The frequency response 27 Hz - 120 Hz provides a wide enough range to capture all the fine musical and sonic details.

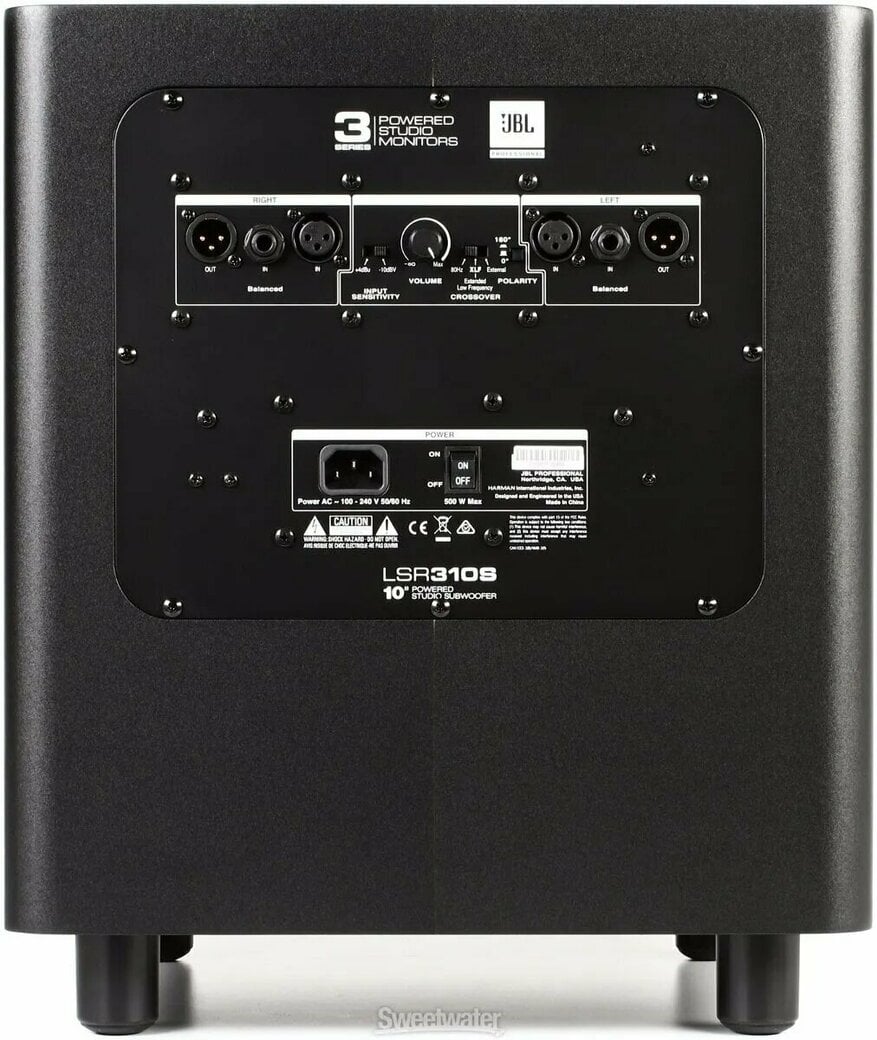

Inputs
- Balanced XLR Female
- Balanced Jack 6.3 mm TRS
Sound Pressure Level (SPL): 113 dB
High SPL levels up to 113 dB allow you to experience the sound as it was originally intended, with sufficient volume and dynamics.
Тype
LF Driver Type
LF Driver Power Amp
Speakers
Controls
Woofer
Tweeter
Power
Power (Watt)
Frequency Range
Bass Reflex Port
Outputs
Package Contents
Manual, Power Cable
Power Supply
240V
UK/EU Power supply included
Yes
Width (cm)
38.1
Height (cm)
44.8
Depth (cm)
39.8
Net Weight (kg)
15.6
Made in
China
Documents
Instructions for use
Manufacturer information
Safety instructions
Please refer to the user manual for the specific safety instructions for this product.
